Ortofon dj vnl trix cartridge

Precision Tools for Professional DJs

VNL TRIX Premounted

Ortofon just leveled up with the all-new VNL TRIX and VNL DANCE, the latest additions to the iconic VNL series. Built tough, tuned for performance, and ready for the stage. The VNL TRIX and VNL DANCE cartridges are engineered for DJs who demand both power and precision.

With a spherical stylus mounted on a rigid aluminum cantilever and Ortofon’s exclusive rubber suspension, VNL TRIX is built to take a beating. The fluorescent white stylus makes cueing even faster, and the premium tracking keeps it locked for pro use, including heavy scratching and back-cueing.

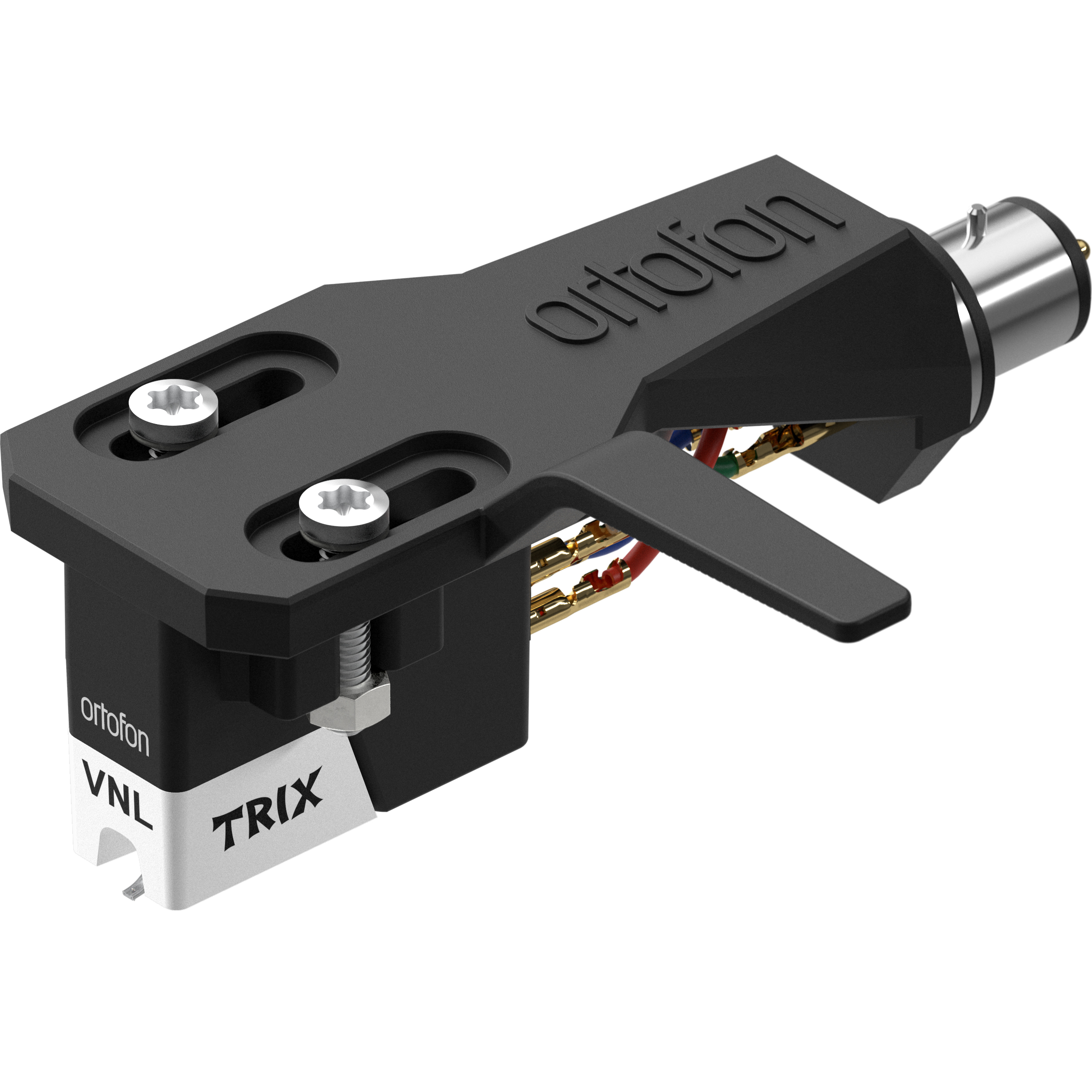

The VNL TRIX Premounted comes ready to play - factory-mounted on our new SH-2 Black universal headshell, engineered for stability, durability, and seamless integration with a wide range of turntables. The headshell mounting screws feature a Torx T8 head, ensuring a secure installation and compatibility with standard Torx T8 tools. Reliable and versatile, it performs equally well in everyday vinyl playback and dedicated listening sessions.

LOUD. CLEAN. POWERFUL.

Pumping a massive 10 mV output, the VNL TRIX deliver raw volume and crystal clarity to any rig, from underground raves to big-room stages. Louder than ever before, it brings pure energy to the system.

Rock-Solid Tracking

Thanks to its 100 µm trackability, the VNL TRIX resists skips and holds the groove under aggressive techniques like scratching and back-cueing. Expect reliable performance in clubs and on tour, with clean, consistent playback!

Find your mark, even in the dark!

The fluorescent white stylus glows bright under UV light, so the tip is instantly visible on busy stages and in blackout booths. Enjoy faster cueing and cleaner beatmatching during heavy scratching and quick back-cues.

Featuring a spherical stylus mounted on a rigid aluminium cantilever and Ortofon's exclusive rubber suspension, VNL TRIX is built to take a beating!

Interchangeable Stylus

The VNL TRIX is fully VNL-compatible - also with the classic VNL cartridges - letting you swap styli to match your vibe and flow.

Specifications

• Output voltage at 1 kHz, 5cm/sec: 10 mV
• Tracking ability at 315Hz: 100 μm
• Cantilever material: Aluminium
• Stylus type: Spherical
• Stylus tip radius: R 18 μm
• Stylus suspension: Ortofon exclusive
• Coil system: Quad coils
• Coil wire material: OFC
• Channel separation at 1 kHz: 22 dB
• Frequency response 20 Hz - 20 kHz: +/-3 dB
• Dynamic lateral compliance: 12 μm/mN
• Recommended tracking force: 4.0 grams
• Recommended load resistance: 47 KΩ
• Premounted cartridge weight: 17 grams
• Cartridge colour: Black
• Stylus colour: White
• Replacement stylus: Stylus VNL TRIX
