Ortofon hifi20 stylus

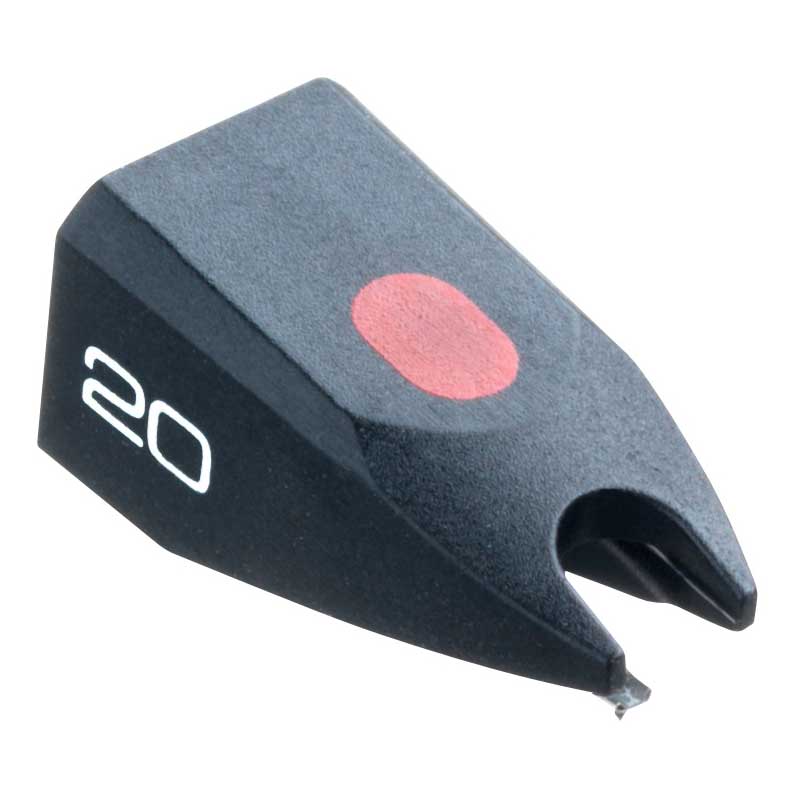

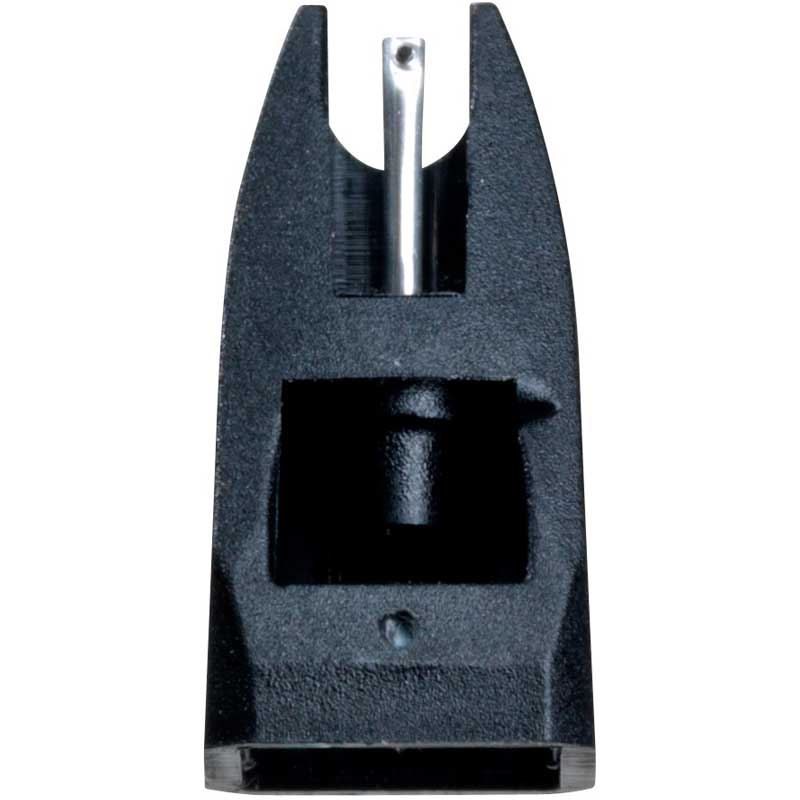

Ortofon Hi-Fi 20 Replacement Stylus

SPECIFICATIONS:

• Frequency response – 20-20.000 Hz + 2 / – 3 dB
• Tracking ability at 315Hz at recommended tracking force *) – 70 µm
• Compliance, dynamic, lateral – 25 µm/mN
• Stylus type – Nude Elliptical
• Stylus tip radius – r/R 8/18 µm

*) Typical value

• Tracking force range – 1.25-1.75 g (12.5-17.5 mN)
• Tracking force, recommended – 1.5 g (15 mN)
• Tracking angle – 20°
• Stylus colour – Black
• Recommended for following cartridges: Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
