Beginner's Guide: Turntable Anatomy

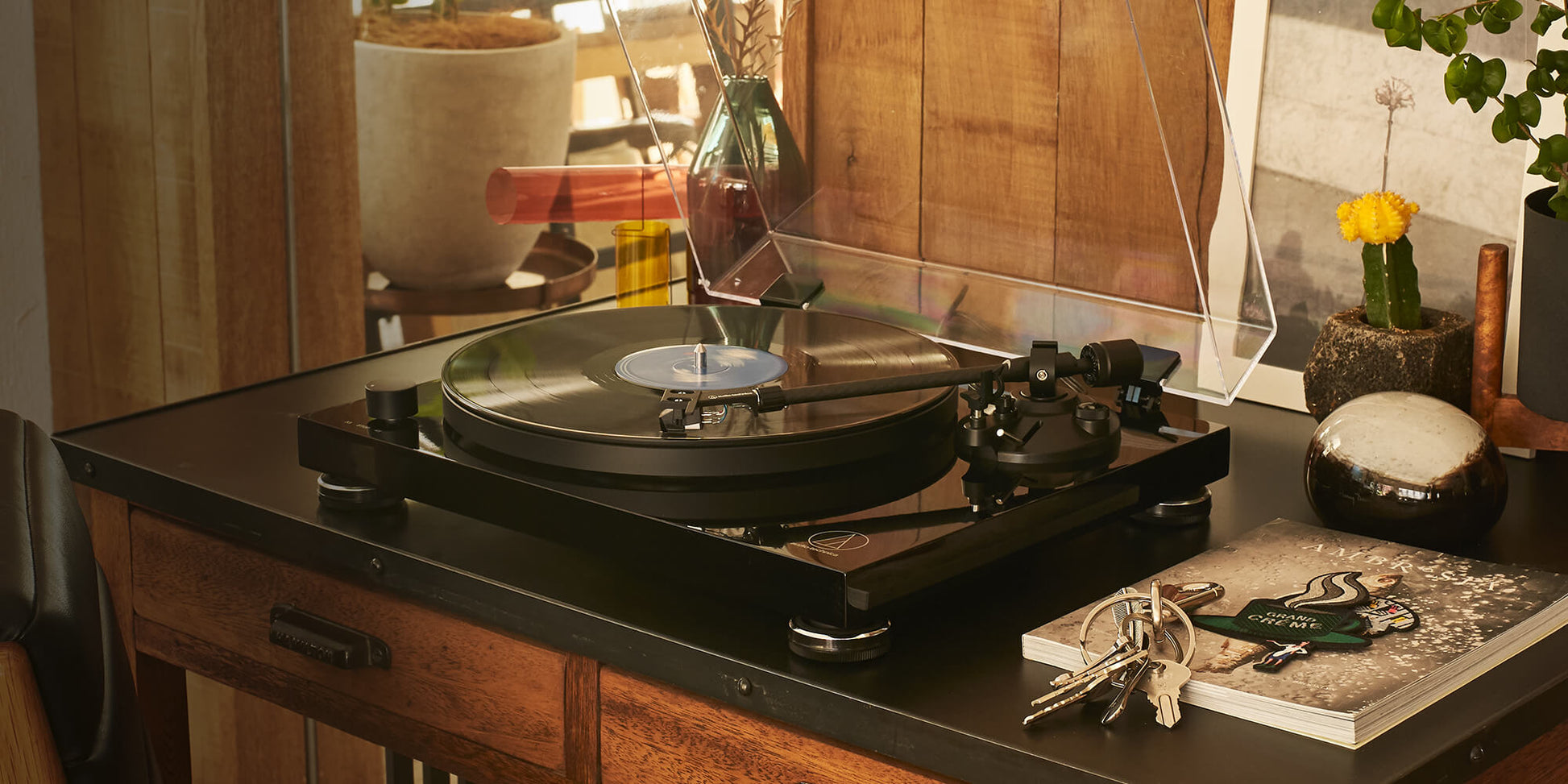

Understanding Turntable Components: A Complete Guide
Record players can seem both simple and complex. As analog devices, they have infinite potential for audio quality, with every component playing a crucial role. This guide breaks down each part and what makes it good or bad.
Platter
The platter holds and rotates the record at either 33 1/3 or 45 RPM. Key qualities include:
- Weight: Heavier platters maintain a more stable speed.
- Balance: Prevents inconsistent rotation.
- Vibration Reduction: Minimizes unwanted noise pickup by the stylus.
Premium platters use materials like metal, glass, or acrylic for superior mass and resonance control.
Platter Mat
Sitting between the platter and record, mats serve to:
- Protect records from scratches.
- Provide grip and stability.
- Act as slipmats for DJ-style playback.
Materials vary and are highly subjective; options include felt, rubber, and cork.
Plinth
The main body of the turntable, the plinth houses the motor and other components.
- Should be rigid, dense, and heavy.
- Hollow spaces should be minimized to reduce unwanted resonance.
Feet
Feet decouple the turntable from its surface to:
- Reduce vibrations.
- Allow for leveling (adjustable feet are preferred).
- Provide additional stability.
Motor
The motor drives the platter and comes in two types:
- Belt Drive: Uses a rubber belt to reduce vibrations and motor noise.
- Direct Drive: Spins the platter directly for higher torque, ideal for DJs, but requires precision engineering.
Tonearm
The tonearm holds the stylus and moves with the record grooves. It should be:
- Lightweight for precise tracking.
- Rigid to prevent distortions.
Tonearm Shapes:
-
Straight: Requires precise design and anti-skate mechanisms to maintain proper tracking. Shorter arms can introduce more tracking error, whereas longer arms reduce error but require more complex design.
-
J-Shape: Features a slight curve at the end, reducing tracking error while maintaining a compact design. It can also make cartridge alignment easier.
-
S-Shape: Allows for a longer effective arm length while fitting into a smaller space, further reducing tracking error. Commonly found on DJ turntables due to their balance of tracking accuracy and durability.
Tonearm Shapes:
- Straight: Requires precise design and anti-skate mechanisms.
- J-Shape: Reduces tracking error with a slight bend.
- S-Shape: Further minimizes tracking error; common in DJ turntables.
Cue Lever
A small lever that gently raises and lowers the tonearm to prevent stylus and record damage.
Counterweight
A metal weight at the rear of the tonearm that ensures correct stylus force. Essential for optimal tracking and record protection.
Anti-Skate
Counteracts the inward pull of the tonearm to prevent the stylus from skipping or skating across the record.
Speed Control
Most records play at either 33 1/3 or 45 RPM. Speed switching can be:
- Manual: Moving a belt between grooves.
- Electronic: Controlled via a switch; high-end models may use an external speed controller.
Stylus & Cartridge
The stylus tracks record grooves and converts vibrations into electrical signals.
Types:
- Moving Magnet (MM): Common, often replaceable stylus.
- Moving Coil (MC): More expensive, lower moving mass, and higher fidelity.
MC cartridges require a special high-gain phono preamp due to lower output levels.
Line / Phono Output
Turntables output either:
- Line Level: Can connect directly to powered speakers or amplifiers.
- Phono Level: Requires a phono preamp to amplify and equalize the signal before playback.
Some turntables include built-in phono stages, while others require an external preamp.
Conclusion
Each component of a turntable contributes to audio performance. Understanding their function helps you make an informed choice when selecting or upgrading your setup.
